PyGRITbx - Tutorial Series Part 3: Bearing Toothaches

Outline

In this third and final part of this tutorial series, you will learn how to use PyGRITbx to:

1. perform gear tooth bending analysis
2. perform gear tooth pitting analysis
3. perform bearing life analysis

These analyses are based on the forces calculated in Part 1 of this tutorial series. Therefore, make sure the code blocks from that part are present in a currently active Jupyter session and have already been executed before you try to run any of the code blocks in this part.

Gear Tooth Verification

Gears transfer a given power from one rotating shaft to another, with the purpose of cotrolling either the torque or the rotational speed (sense and/or magnitude) to a desired value. This is achieved by exchanging forces between 2 (or more) gears with different number of teeth.

In the process of power transfer, the teeth bend due to the load they need to support. Moreover, the contact between 2 teeth belonging to 2 different gears is dynamic; that is, there’s relative motion between the teeth.

These two phenomena cause the gear tooth to fail in 2 different modes:

• bending
• pitting (wear)

To verify whether the gears present in our gearbox can sustain the loads imposed by the operating point for a desired duration, we need to calculate a safety factor corresponding to each failure mode.

Gear Tooth Bending (Fatigue) Failure Mode

To calculate the bending safety factor, the following equation is used:

$$ S_F = \frac{\sigma_{FP}}{\sigma_{max,bending}} \frac{Y_N}{Y_\theta Y_Z} $$

Where:

• $\bold{Y_N}$: stress cycle factor
• $\bold{Y_\theta}$: temperature factor
• $\bold{Y_Z}$: reliability factor
• $\boldsymbol{\sigma}_{\bold{FP}}$: bending fatigue strength

And $\boldsymbol{\sigma}_{\bold{max,bending}}$, the maximum tooth gear gending stress, is calculated according to the following equation:

$$ \sigma_{max,bending} = F_t K_O K_B K_v K_H K_S \frac{1}{b.m_t Y_J} $$

Where:

• $\bold{F_t}$: tangential force on gear
• $\bold{K_O}$: overload factor
• $\bold{K_B}$: rim-thickness factor
• $\bold{K_v}$: dynamic factor
• $\bold{K_H}$: load distribution factor
• $\bold{K_S}$: size factor
• $\bold{b}$: minimum tooth width between driver and driven gears
• $\bold{m_t}$: transverse module
• $\bold{Y_J}$: bending strength geometry factor

Obviously, obtaining all these factors to eventually calculate the safety factor is indeed an arduous endeavor. PyGRITbx demands mainly the given information and it will calculate all these factors, the maximum tooth gear bending stress, as well as the bending safety factor.

For gear R1, we know:

• it exchanges forces through gear mesh M1
• the power source is Uniform
• the driven machine is Uniform
• the shaft diameter is 35 [mm]
• load distribution factor coefficient $\bold{C_e}$ is equal to 1
• teeth condition is uncrowned teeth
• suspended shaft length is $\bold{a_1 + b_1}$
• use condition is for Commercial, enclosed units
• bending fatigue strength is equal to 320 [MPa]
• stress cycle factor model: $\bold{Y_N = 1.3558.N^{-0.0178}}$
• number of cycles is equal to $\bold{10^8}$
• temperature is equal to 60 [$\bold{\degree C}$]
• reliability is equal to 99%

Given this information, we can perform the gear tooth bending analysis by executing the following code:

# Gear R1: Gear Tooth Bending Safety Factor
R1.analyseGearToothBending(mesh=M1, powerSource="Uniform", drivenMachine="Uniform",
                           dShaft=35, Ce=1, teethCond="uncrowned teeth", lShaft=a1+b1,
                           useCond="Commercial, enclosed units", sigma_FP=320, b_YN=1.3558,
                           e_YN=-0.0178, N=1e8, temp=60, rel=0.99)

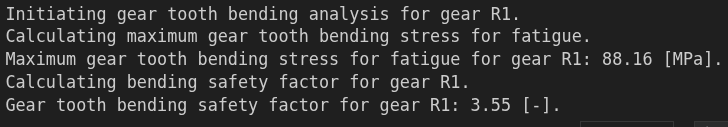

This should produce the output shown in Figure 1.

We can then print out all the calculated factors using the following code block:

# Print Calculated Factors
# Overload Factor
print(f"Overload factor: {R1.K_0:.2f}")

# Output: Overload factor: 1.00

#----------------------------------------------------------

# Rim-Thickness Factor
print(f"Rim-Thickness Factors: {R1.K_B:.2f}")

# Output: Rim-Thickness Factors: 2.14

#----------------------------------------------------------

# Dynamic Factor
print(f"Dynamic Factor: {R1.K_v:.2f}")

# Output: Dynamic Factor: 1.54

#----------------------------------------------------------

# Load Distribution Factor
print(f"Load Distribution Factor: {R1.K_H:.2f}")

# Output: Load Distribution Factor: 1.19

#----------------------------------------------------------

# Size Factor
print(f"Size Factor: {R1.K_S:.2f}")

# Output: Size Factor: 1.03

#----------------------------------------------------------

# Bending Strength Geometry Factor
print(f"Geometry Factor J': {R1.J_p:.2f}")
print(f"Geometry Factor J'': {R1.J_pp:.2f}")
print(f"Bending Strength Geometry Factor Y_J: {R1.Y_J:.2f}")

# Output:
# Geometry Factor J': 0.53
# Geometry Factor J'': 0.95
# Bending Strength Geometry Factor J': 0.50

#----------------------------------------------------------

# Stress Cycle Life Factor
print(f"Stress Cycle Life Factor: {R1.Y_N:.2f}")

# Output: Stress Cycle Life Factor: 0.98

#----------------------------------------------------------

# Temperature Factor
print(f"Temperature Factor: {R1.Y_theta:.2f}")

# Output: Temperature Factor: 1.00

#----------------------------------------------------------

# Reliability Factor
print(f"Reliability Factor: {R1.Y_Z:.2f}")

# Output: Reliability Factor: 1.00

Would you be up for the challenge to perform the same analysis on gear R3? I’ll leave it to you as a practice!

Gear Tooth Pitting (Wear) Failure Mode

Calculating the wear safety factor is as hectic an endeavor as that of calculating the bending safety factor. It includes a similar equation relying on several factors that need to be either calculated or obtained from reference graphs.

To avoid repelling you with too many equations, I will simply present the code required to perform the gear tooth pitting analysis, a brief description of the parameters involved, and the output of the code execution, all performed on gear R3.

# Gear R3: Gear Tooth Wear Safety Factor
R3.analyseGearToothPitting(mesh=M2, Z_R=1, sigma_HP=1360, b_ZN=1.4488, e_ZN=-0.023, N=1e8)

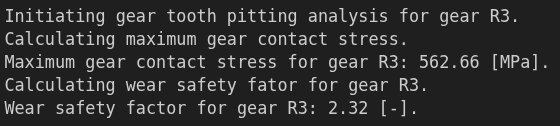

The output of executing the code is shown in Figure 2.

The parameters involved are:

• gear mesh M2, through which gear R3 exchanges forces
• surface condition factor $\bold{Z_R}$ is equal to 1
• contact fatigue strength is equal to 1360 [MPa]
• stress cycle factor model: $\bold{Z_N = 1.4488.N^{-0.023}}$
• number of cycles is equal to $\bold{10^8}$

To print out the calculated factors involved in the gear tooth pitting analysis, use the same logic as that shown for the gear tooth bending analysis performed on gear R1 in the previous section.

At this point, we conclude the section dedicated to the verification of gear design. In the next section, we’ll verify the choice of bearings!

Bearing Choice Verification

Similar to shaft design verification analysis, bearing choice verification consists of a static analysis and fatigue analysis. Contrary to shaft design verification analysis, we don’t need to calculate the internal loads and stresses to go through the analyses. We only need to rely on the components of the reaction force produced by the bearing, a step we already performed in the 1st Part of this tutorial series.

Static Analysis

The static analysis for bearings consists of 2 parts:

1. verification of the minimum load requisite
2. calculation of the static safety factor

The requisite minimum load derives from the fact that in certain applications, the bearing choice is determined by factors other than load. These factors can be related to a shaft diameter constraint, or a critical speed constraint. In applications where the bearing is subjected to light loads, failure mechanisms such as skidding and smearing of raceways or cage damage can prevail over fatigue.

In general, the minimum load should follow the set of rules defined by the following simple equations:

$$ F_{rm} \ge 0.01C \text{ for ball bearings} $$

$$ F_{rm} \ge 0.02C \text{ for roller bearings} $$

Where C is the dynamic basic load rating of the bearing.

To calculate the static safety factor, we use the following formula:

$$ s_0 = \frac{C_0}{P_0} $$

where:

• $\bold{C_0}$: required basic static load rating
• $\bold{P_0}$: equivalent static bearing load

The required basic static load bearing is reported in the SKF Catalogue and is a property that we passed to the toolbox when defining the bearings. The equivalent static bearing load instead is calculated based on the radial and axial components of the reaction force produced by the bearing. The catalogue offers different possibilities for calculating this hypothetical load based on the bearing type and bearing arrangement. However, you don’t need to deal with that as the toolbox will figure out this for you!

Fatigue Analysis: Bearing Life Estimation

Contrary to the static analysis, the fatigue analysis does NOT deal with a safety factor calculation. Instead, it produces the estimated life of the bearing either in:

• millions of cycles $$ L_{nm} = a_1 a_{SKF} \left( {\frac{C}{P}} \right)^p $$

• operating hours $$ L_{nmh} = \frac{10^6}{60.n} L_{nm} $$

Where:

• $\bold{a_1}$: life adjustment factor for reliability
• $\bold{a_{SKF}}$: coefficient based on contamination level, equivalent dynamic load, and viscosity ratio
• $\bold{P}$: equivalent dynamic load
• $\bold{p}$: exponent of the life equation

PyGRITbx requires information about the reliability, contamination condition, oil of choice, and the $\bold{a_{SKF}}$ coefficient to calculate the estimated life of the bearing.

Once the oil is chosen, we can define it as a Python object as shown in the following code block:

# Define Oil of Choice
oil = pgt.Oil(name="ISO VG 100", temp=60, v1=15, v=45)

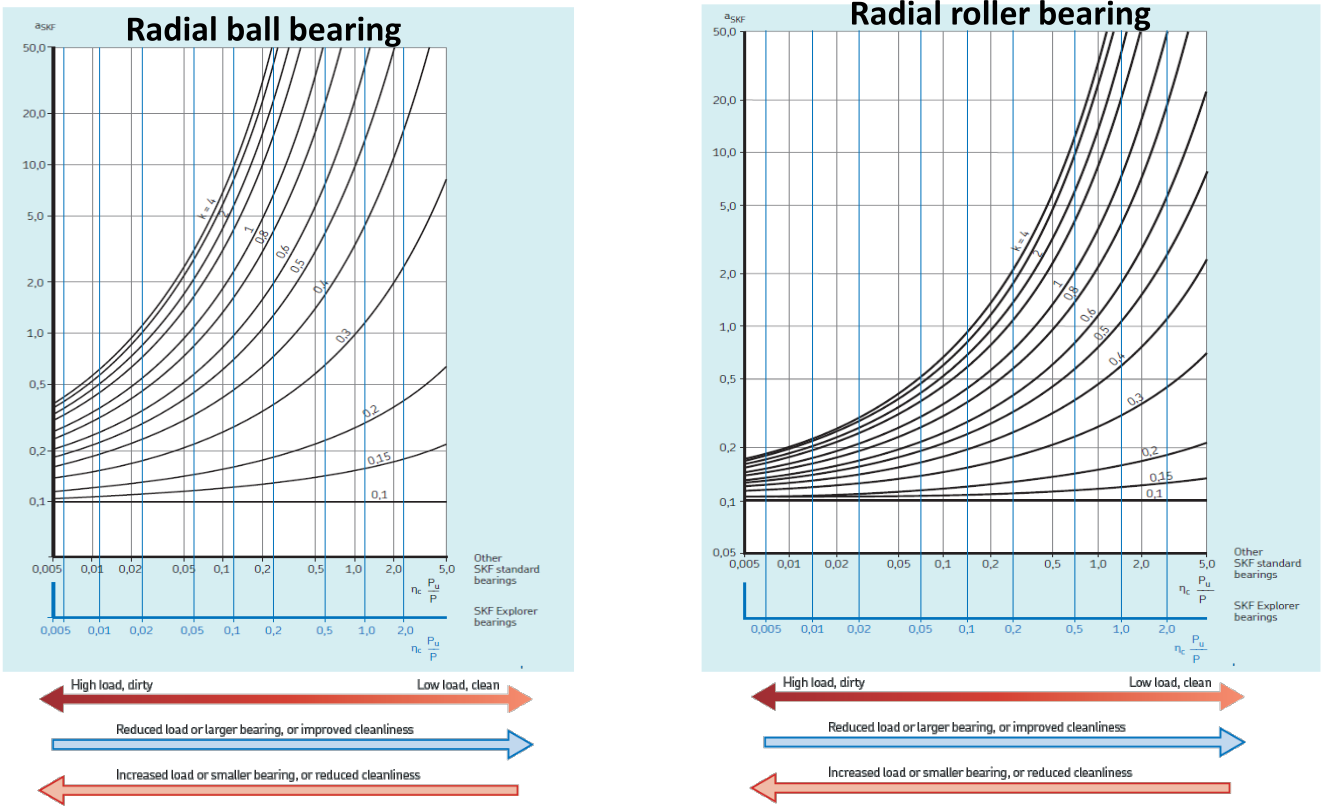

For the SKF coefficient, we need the contamination factor, the equivalent dynamic load, and the oil viscosity ratio as shown in Figure 3.

We can obtain this information by executing the following code:

# Bearing A
# Contamination Factor
A.calculateEtaC(condition="Slight contamination")
print(f"Bearing A Contamination Factor: {A.eta_c:.2f}")

# Output: Bearing A Contamination Factor: 0.40

#-------------------------------------------------------

# Equivalent Dynamic Load
A.calculateEquivalentDynamicLoad()
print(f"Bearing A Equivalent Dynamic Load: {A.P:.2f} [N]")

# Output: Bearing A Equivalent Dynamic Load: 1635.01 [N]

#-------------------------------------------------------

# Oil Viscosity Ratio
print(f"Oil '{oil.name}' Viscosity Ratio: {oil.k:.2f}")

# Output: Oil 'ISO VG 100' Viscosity Ratio: 3.00

Once we obtain the SKF coefficient, we can then run the following code block on bearing A to perform the static and fatigue analysis and confirm the bearing choice.

# Bearing A: Life Analysis
A.performLifeAnalysis(rel=95, condition="Slight contamination", a_skf=2, oil=oil)

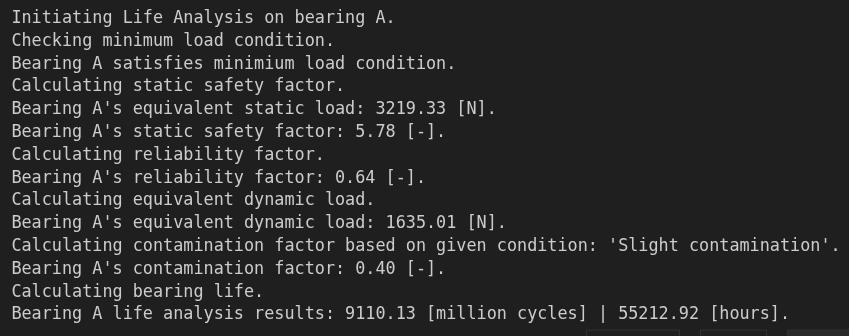

The output should look like Figure 4.

For bearings B, C, and D, we can execute a similar code and obtain the corresponding results. I’ll leave it to you as a challenge!

Final Words

This remarks the conclusion of this tutorial series. If you’ve made it this far, thanks for following along. I would like to stress that PyGRITbx is just a tool that can help you perform the analysis faster. This doesn’t mean that you shouldn’t understand the concepts and the theory behind the analyses. If anything, the tool can be properly used only if the user understands the concepts and the theory behind it, but doesn’t want to waste time performing tedious calculations.

Finally, I would like to ask for your kind feedback. Please reach out if you think I should change my writing style or the way I tend to explain things. If you find any bugs in the toolbox, I would really appreciate feedback so I (or we) can work on fixing them. If you have an idea that can be transformed into a feature, let me know so we can discuss it and work on adding it.

Thank you!
